How Do I Connect My Product to the Grid?
Fox ESS offers you three options to choose from, meeting the needs of all Australian users. You can choose the appropriate option based on your actual situation.
-

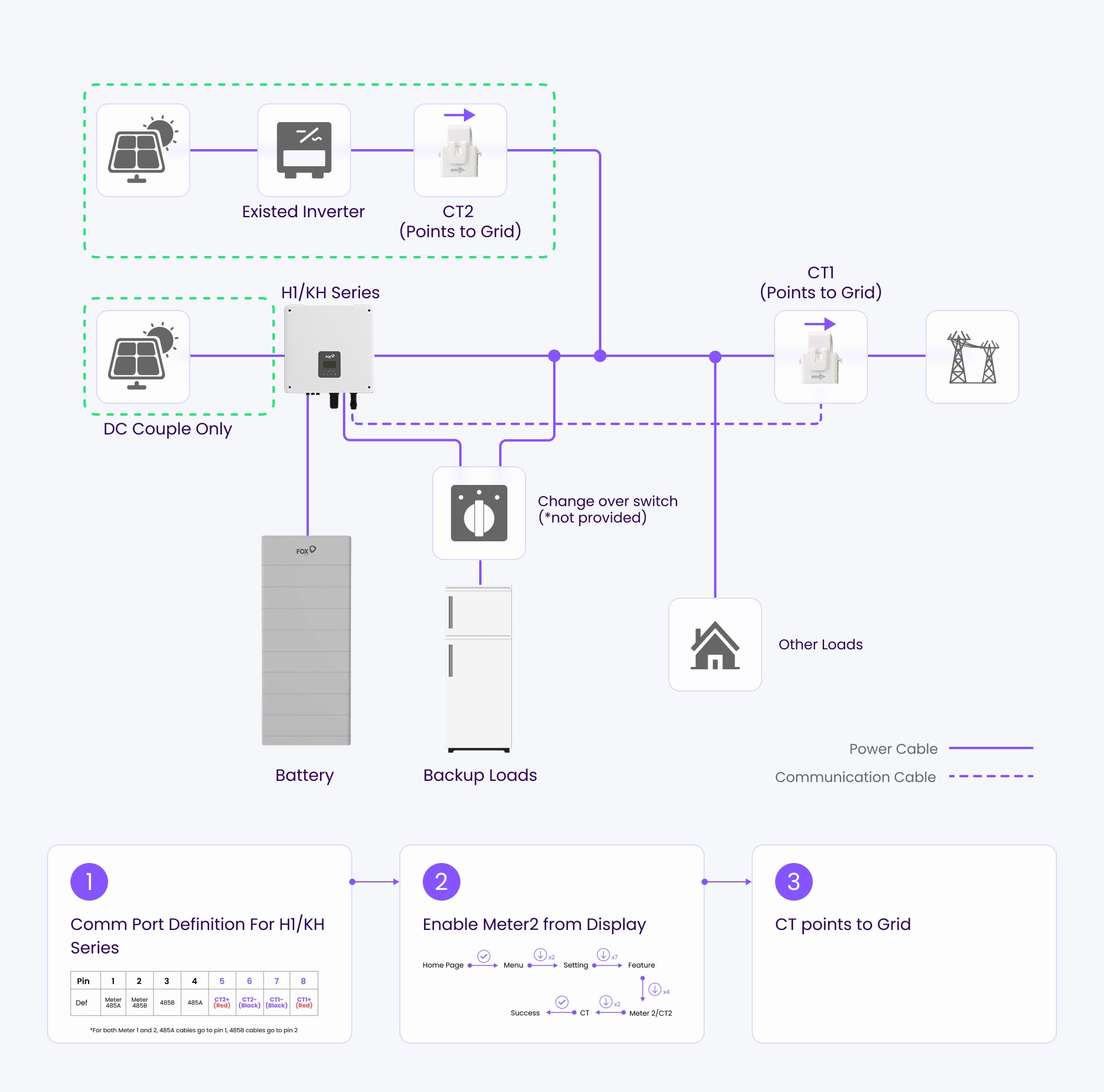

Single Phase Site with Hybrid InverterSolution: H1/KH ＋ 2CTs
-

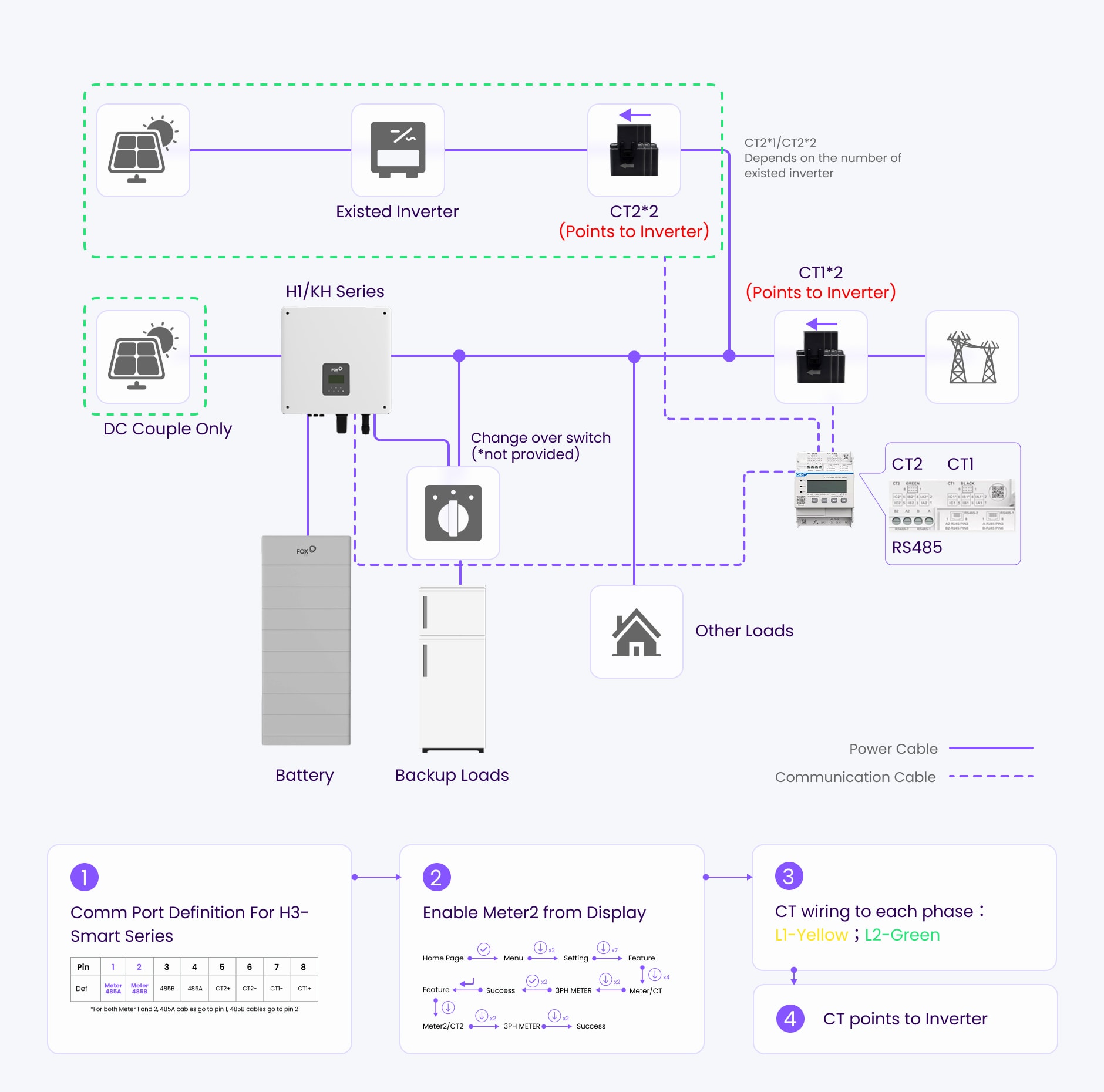

Two Phase Site with Hybrid InverterSolution: H1/KH + 6CTs Meter
-

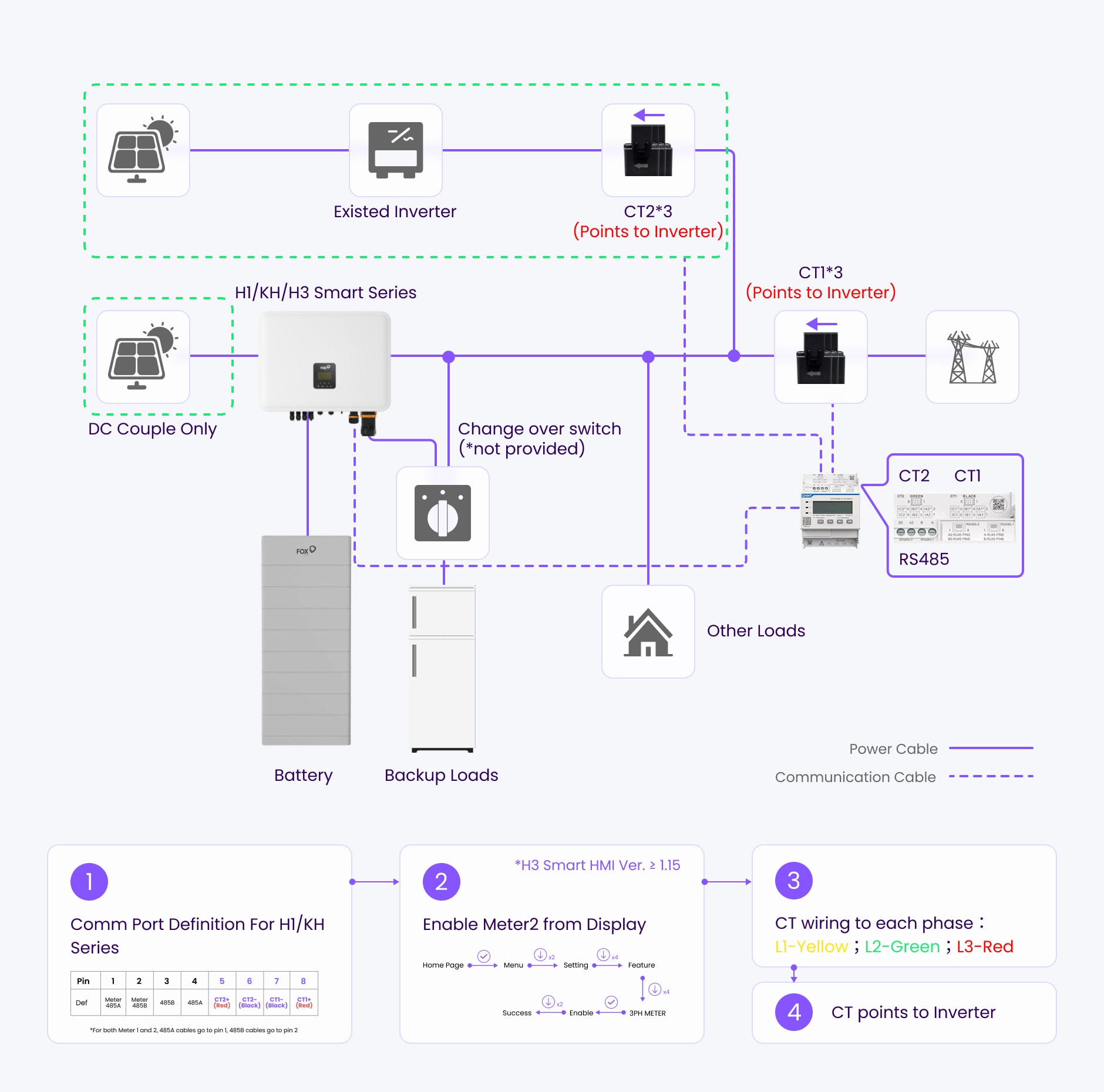

Three Phase Site with Hybrid InverterSolution: H1/KH/H3-Smart + 6CTs Meter
Got a Question About Fox ESS ?
Check out our FAQs below or get in touch with the team.
-
How to connect a 6CT Smart Meter?
Connect via RJ45 cable to Meter/CT port, and clamp 6 CTs on the main phase wires. CT arrows must face grid direction.
-
How to check if CT works correctly?
On APP/LCD check power direction. If reversed, reinstall the CT in correct orientation.
-
What needs to be set for first startup?
Enter password '0000' → Set country code → Set system time → Start inverter.
-
Battery connected but not recognized?
Check if BMS cable is firmly connected, and confirm correct battery protocol in APP/LCD. Some batteries require manual selection.
-
Smart meter connected but reading incorrect, why?
Check phase sequence, CT installation direction, and RJ45 port connection.
-
Can the inverter use both smart meter and CT at the same time?
No, the Meter/CT port can only connect to one device.
-
What happens if CT is installed in reverse?
The power direction will be wrong; the inverter may show 'reverse flow' or incorrect energy data. Flip the CT.
-
How to deal with 'Leakage Current' alarm?
Check PV module grounding, ensure the external RCD type is correct, and avoid nuisance tripping.
-
Why does it display 'No Utility'?
The inverter cannot detect grid voltage. Possible causes: AC breaker not closed, or GRID wiring error.
-
What is the EPS switchover time?
<20ms, ensuring uninterrupted supply for critical loads.
